The Lauge-Hansen classification is a mechanism-based system used to describe ankle fractures. Unlike the Weber classification, which focuses on the level of fibular fracture, the Lauge-Hansen ankle fracture classification explains how the injury occurred, based on foot position and direction of deforming force.
This system is widely taught in orthopedic training, radiology, and trauma education because it helps predict fracture patterns, ligament injuries, instability, and surgical requirements. One of the most commonly searched patterns is the SE4 ankle fracture (Supination–External Rotation Stage IV), which represents a completely unstable injury.
In this comprehensive guide, you’ll learn:
Table of Contents

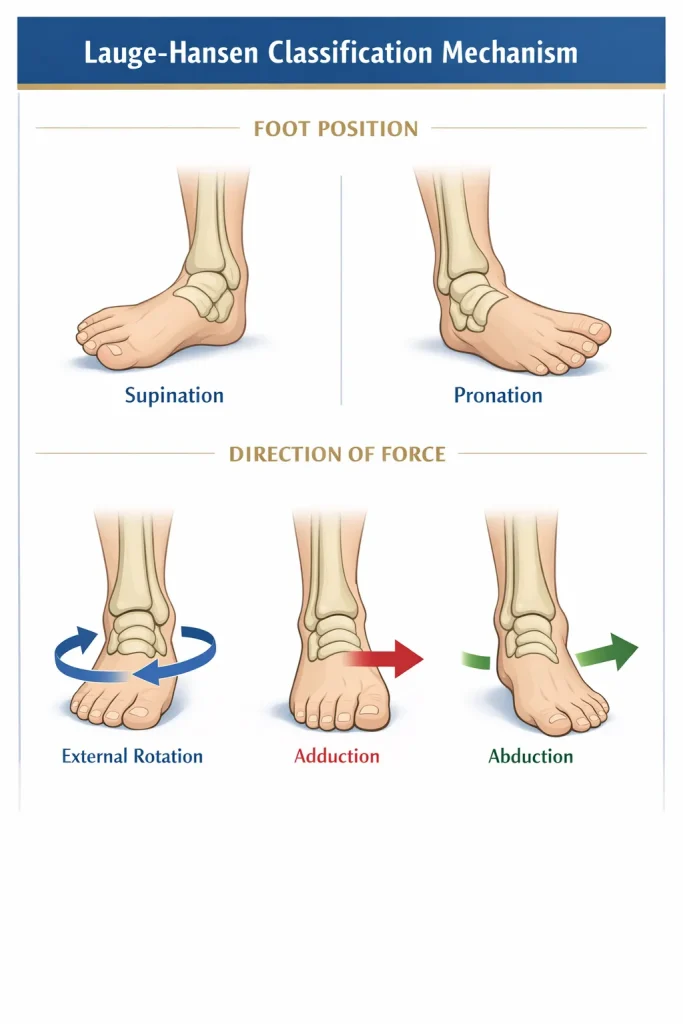

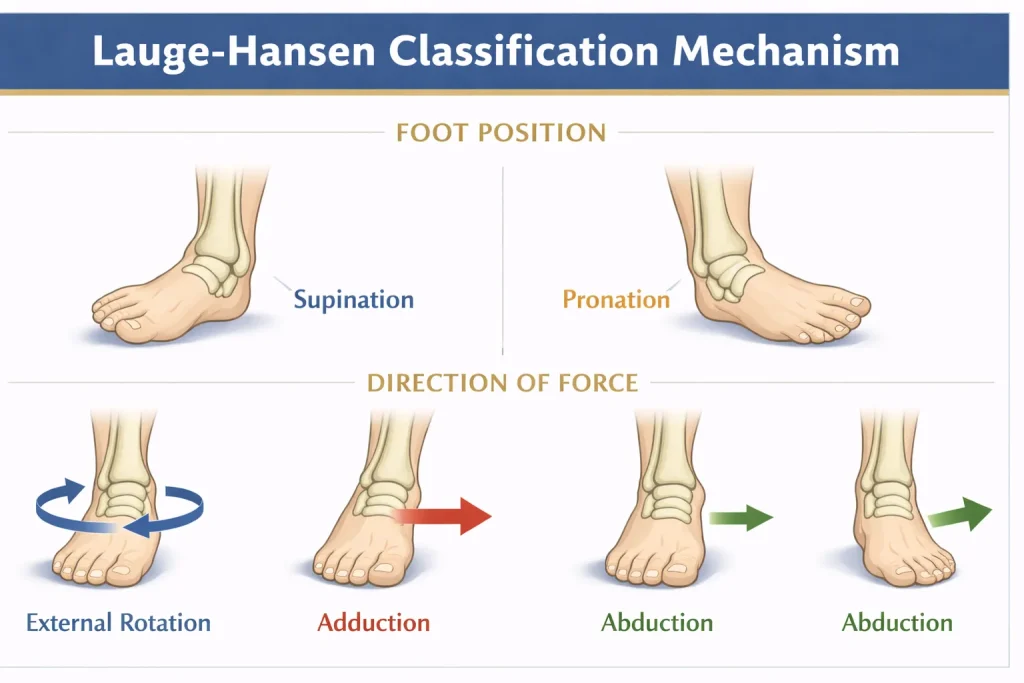

What is the Lauge-Hansen Classification?
The Lauge-Hansen classification was developed by Danish orthopedic surgeon Niels Lauge-Hansen. It categorizes ankle fractures based on the mechanism of injury, not just fracture location.
Each injury pattern is named using two components:
- Foot position at time of injury
- Supination
- Pronation
- Direction of applied force
- External rotation
- Adduction
- Abduction
For example:
Supination–External Rotation (SER)
This means the foot was supinated, and an external rotational force caused the injury.
Basic Principles of the Lauge-Hansen System
The classification follows a logical sequence:
- First word = foot position
- Second word = direction of force
- Injury progresses in stages
Each mechanism progresses through predictable stages of structural failure.
Typical stage progression:
- Stage I → ligament injury or minor fracture
- Stage II → fibular fracture
- Stage III → posterior malleolus injury
- Stage IV → medial malleolus fracture or deltoid ligament rupture
This sequential progression helps predict associated injuries and instability.
Types of Lauge-Hansen Ankle Fractures
There are four primary patterns in the Lauge-Hansen classification:
- Supination–External Rotation (SER)
- Supination–Adduction (SA)
- Pronation–External Rotation (PER)
- Pronation–Abduction (PA)
Supination–External Rotation (SER)
This is the most common ankle fracture mechanism.
Mechanism
- Foot in supination
- External rotational force applied
Stage Progression
Stage I – Anterior inferior tibiofibular ligament injury
Stage II – Oblique fibular fracture (Weber B type)
Stage III – Posterior malleolus fracture
Stage IV – Medial malleolus fracture or deltoid ligament rupture
An SER4 ankle fracture represents complete instability.
Supination–Adduction (SA)
Mechanism
- Supinated foot
- Adduction force
Injury Pattern
- Transverse fibular fracture below the syndesmosis
- Vertical medial malleolus fracture
This pattern may be unstable depending on displacement.
Pronation–External Rotation (PER)
Mechanism
- Foot pronated
- External rotational force
Injury Pattern
- Medial malleolus fracture or deltoid ligament injury
- High fibular fracture (similar to Weber C)
- Syndesmotic disruption
PER injuries are often unstable and surgical.
Pronation–Abduction (PA)
Mechanism
- Foot pronated
- Abduction force
Injury Pattern
- Transverse medial malleolus fracture
- Comminuted fibular fracture
- Syndesmotic injury
These fractures are typically unstable.
SE4 Ankle Fracture Explained
The term SE4 ankle fracture refers to:
Supination–External Rotation Stage IV
This represents a complete injury pattern involving:
- Fibular fracture (Weber B type)
- Posterior malleolus fracture
- Medial malleolus fracture or deltoid ligament rupture
SE4 injuries are:
- Highly unstable
- Frequently require surgery
- Common in twisting injuries
Radiologically, SE4 shows:
- Oblique fibular fracture
- Posterior fragment
- Medial clear space widening
Because of instability, surgical fixation is commonly required.
Lauge-Hansen Mnemonic
Remembering all patterns can be challenging, so mnemonics help.
Simple Pattern Mnemonic:
“Some Say Please Pass”
- S – Supination External Rotation (SER)
- S – Supination Adduction (SA)
- P – Pronation External Rotation (PER)
- P – Pronation Abduction (PA)
Another learning trick:
Foot position always comes first.
Force direction comes second.
Lauge-Hansen vs Weber Classification
Both systems classify ankle fractures, but differently.
| Feature | Lauge-Hansen | Weber |
|---|---|---|
| Basis | Mechanism | Fracture level |
| Focus | Foot position + force | Syndesmosis level |
| Complexity | Higher | Simpler |
| Clinical use | Predicts progression | Guides stability |
Example correlation:
- SER fractures often correspond to Weber B fractures
- PER fractures often correspond to Weber C fractures
Using both systems together improves understanding.
Read more about: Weber Classification of Ankle Fractures: Types A, B & C Explained
Lauge-Hansen Classification Radiology Guide
Radiology is essential for identifying fracture patterns.

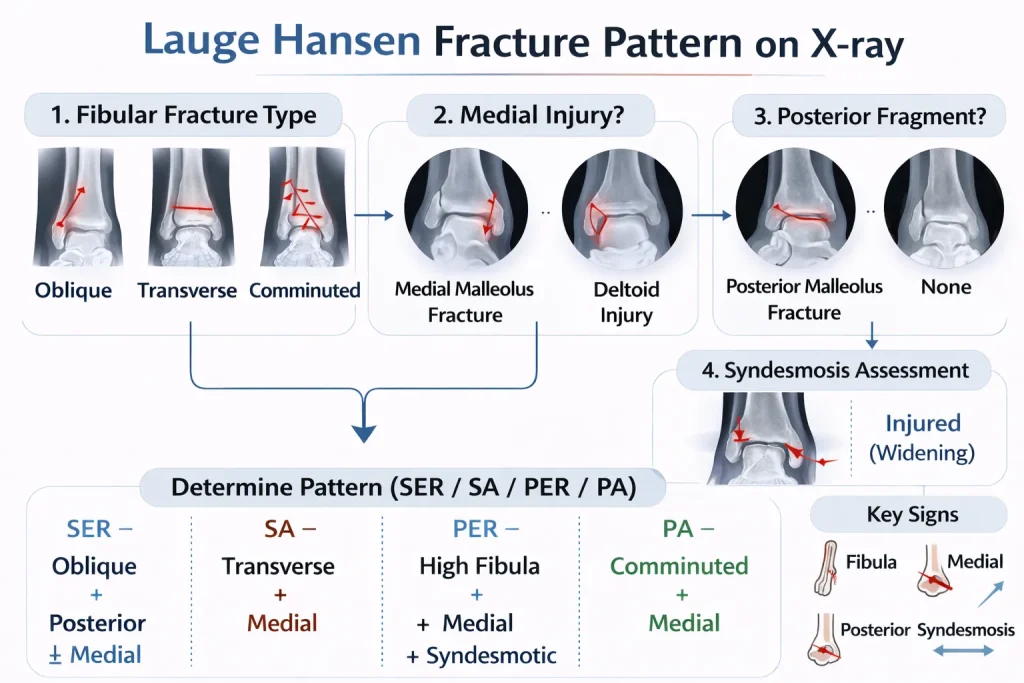

How to Identify the Lauge-Hansen Pattern on X-ray
Steps:
- Identify fibular fracture type
- Check the medial malleolus
- Assess posterior malleolus
- Evaluate syndesmosis
Pattern recognition is key.
Radiographic Progression by Stage
Stage I – ligament injury (may not be visible)
Stage II – fibular fracture
Stage III – posterior malleolus involvement
Stage IV – medial fracture or deltoid rupture
A CT scan may be required to assess posterior fragments.
Clinical Relevance of Lauge-Hansen Classification
The classification is clinically valuable because it:
- Predicts instability
- Anticipates ligament injury
- Guides surgical planning
- Helps explain the mechanism to patients
Understanding the mechanism helps surgeons anticipate associated injuries.
Dr Divya Ahuja uses mechanism-based assessment along with radiology to plan optimal fixation in complex ankle fractures.
Treatment Based on Lauge-Hansen Pattern
Treatment depends on stage and stability.
- SER I–II → may be stable
- SER III–IV → unstable, often surgical
- PER injuries → usually surgical
- PA injuries → commonly surgical
Surgical treatment may include:
- ORIF (Open Reduction and Internal Fixation)
- Plate fixation
- Syndesmotic screw
- Posterior malleolus fixation
Recovery & Prognosis
Recovery depends on:
- Fracture severity
- Number of stages involved
- Ligament injury
- Surgical accuracy
- Rehabilitation adherence
Typical timeline:
- 6 weeks non-weight bearing
- 8–12 weeks of gradual walking
- 3–6 months rehabilitation
- 6–12 months full recovery
SE4 injuries may require longer recovery.
Complications
Possible complications include:
- Post-traumatic arthritis
- Chronic instability
- Syndesmotic failure
- Malunion
- Nonunion
Early treatment reduces long-term risks.
Treatment in India & International Consultation
Complex ankle fractures require careful evaluation and anatomical fixation.
Dr Divya Ahuja specializes in:
- Mechanism-based fracture assessment
- Complex ankle trauma fixation
- Syndesmotic stabilization
- Advanced rehabilitation planning
International patients benefit from:
- Online consultations
- Surgical planning
- Affordable treatment options
- Comprehensive postoperative care
Conclusion
The Lauge-Hansen ankle fracture classification provides deep insight into the mechanism of injury and predictable fracture progression. By understanding foot position, force direction, and stage progression, clinicians can better predict instability, plan treatment, and improve outcomes. When combined with radiological evaluation and modern surgical techniques, it remains a powerful tool in ankle trauma management.
FAQs
What is Lauge-Hansen’s classification of ankle fractures?
Lauge Hansen classification is a mechanism-based system that categorizes ankle fractures according to foot position and direction of force at the time of injury. It includes patterns like Supination-External Rotation and Pronation-External Rotation.
What does SE4 ankle fracture mean?
SE4 stands for Supination–External Rotation Stage IV, representing a completely unstable ankle fracture involving fibular fracture, posterior malleolus injury, and medial malleolus fracture or deltoid ligament rupture.
What is the Lauge Hansen mnemonic for easy recall?
A common mnemonic is “Some Say Please Pass,” representing Supination-External Rotation (SER), Supination-Adduction (SA), Pronation-External Rotation (PER), and Pronation-Abduction (PA) fracture patterns.
How is Lauge Hansen’s classification different from Weber’s classification?
Lauge Hansen classification is based on injury mechanism, while Weber classification is based on the level of fibular fracture relative to the syndesmosis. Both systems complement each other in ankle fracture assessment.
Which Lauge Hansen fracture pattern is most common?
Supination–External Rotation (SER) is the most common Lauge-Hansen ankle fracture pattern, often corresponding to Weber B fractures and progressing through four predictable stages.
Is the SE4 ankle fracture considered unstable?
Yes, SE4 ankle fractures are typically unstable because they involve multiple structural failures, including medial and posterior components, and often require surgical fixation.
How many stages are there in the Lauge-Hansen classification?
Most Lauge Hansen patterns progress through four stages, starting with ligament injury and progressing to fibular fracture, posterior malleolus involvement, and medial malleolus fracture.
How do you identify the Lauge Hansen pattern on X-ray?
Identification involves analyzing fibular fracture type, medial malleolus involvement, posterior fragment presence, and syndesmotic widening on ankle X-rays.
What is a supination external rotation ankle fracture?
Supination External Rotation fracture occurs when the foot is supinated and external rotational force is applied, leading to predictable staged injury progression, commonly ending in SER4 pattern.
Is Lauge Hansen classification still used in modern orthopedics?
Yes, Lauge Hansen classification remains relevant in orthopedic training and trauma assessment because it explains fracture mechanism and predicts associated ligament injuries.
